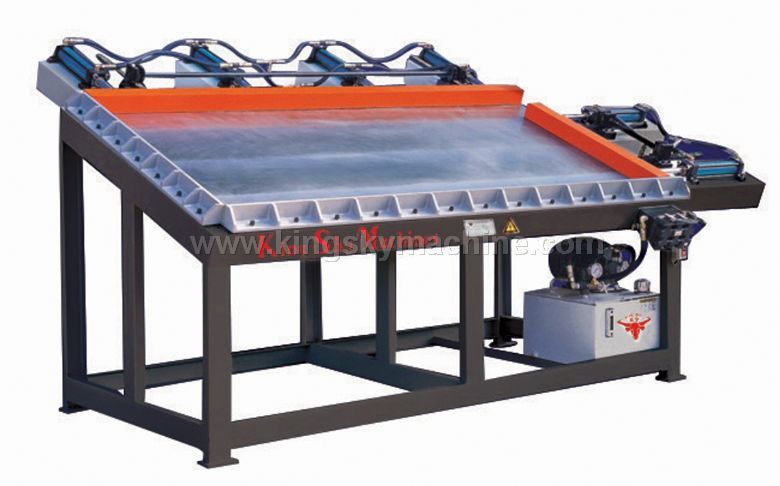

ENGLISHKY-AWS2511-Hydraulic Framework Assembling Machine
The hydraulic double-face framework assembling machine is applicable to assemble 90 degree frame for cabinet doors, photo frames, picture frames or furniture doors with or without tenon. This machine composes of a high-frequency generator and a photo frame assembling machine, with the features of accurate positioning, fast heating, consistent molding, simple operation and low labor intensity, etc..
TECHNICAL DATA
|
Model and parameter |
KY-AWS2511
Hydraulic Framework Assembling Machine |
|
Maximum length of jogged framework |
2440mm |
|
Maximum width of jogged framework |
1220mm |
|
Work position |
One work position |
|
Installation Motor power |
4KW |
|
Working voltage |
Tri-phase 380V 50HZ |
|
Overall Dimension (L×W×H) |
3230x1900x1620mm |
|
Weight |
1300kg |
