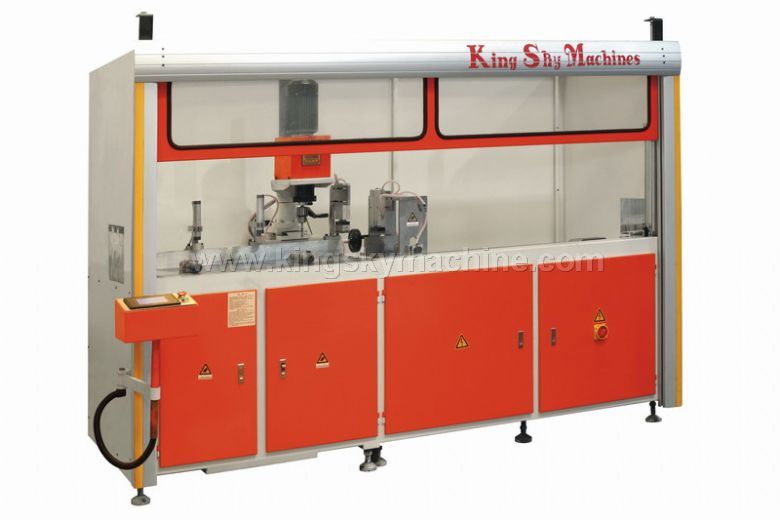

ENGLISHKS-J8Z117S-CNC Auto-feeding Swing angle drilling and sawing center
The machine is exclusively researched and developed by our company with patented technology by adopting the internationally advanced mechanical technology and concept, in combination with our company’s professional development results. Through sawing, automatic feeding, drilling three-axis digital control, an automated assembly-line method is adopted to realize orderly machining of multiple drilling and cutting of any length of metal profile for many times. This machine is particularly applicable to the machining enterprises engaged in industrial aluminum fittings, aluminum curtain wall accessories, doors and windows hardware fittings, building hardware fittings, door-control hardware accessories and home hardware accessories, and is the latest equipment for one-time completion of drilling, counter boring, cutting and other complex machining processes for a single workpiece for many times.
The whole machine body is manufactured for one-time in the machining center after annealing treatment. Equipped with German hard alloy saw blades, imported guide rail, lead screw; and installed with hydropneumatic damper stepless speed regulation, automatic oil spray (mist) lubrication cooling device, this machine is firm and durable with precise positioning, operational sensitivity and superior stability. With the control software jointly developed with international famous enterprises, it can realize automatic detection, diagnosis, remote maintenance, upgrading functions, circuit stability, wide applicability of operating environments; clear interface, simple operation, high production efficiency and low labor intensity (one person can take charge of 2-3 sets); high degree of automation (skilled operation after general training). The installed scrap suction device is environment-friendly and healthy.
This machine can be installed with multiple drilling heads as required by the clients. Through program control, it can realize batch or orderly drilling of any work position of the workpieces.
TECHNICAL PARAMETER
|
Model and Parameter |
KS-J8Z117S CNC Auto-feeding Swing angle drilling and sawing center | |
|
Cutting angle |
Any angle between ±22.5°double ends | |
|
Optimized material cutting function |
One time or many times auto feeding in same or different length as per programme | |
|
Drilling /tapping head |
Drilling head | |
|
Multiple shaft drilling device(3-axis adjustable) |
1 original Taiwan made porous device | |
|
Length of one-time automatic feeding |
1200mm/ 0.02mm | |
|
Precision of cutting length |
0.1mm | |
|
Feeding Motor Power and Speed |
750W/1-30m/min | |
|
Drilling head power / speed |
Taiwan 1.5KW/2800 rpm | |
|
Cutting motor power / speed |
2.2KW /2840 rpm | |
|
Cutting angle/speed |
Feeding 0-3m/min Returning 2-3m/min | |
|
Repositioning accuracy |
0.02mm/m | |
|
Maximum travel of driving head |
100-150mm | |
|
Cutting width X cutting height |
230x150mm | |
|
Specification of driller |
ISO16 Ф3-15 | |
|
Specification of blade |
Ф500×Ф30×120T | |
|
Minimum distance of single group of holes (porous device) |
13.5-22mm | |
|
Drilling diameter |
Ф3-Ф15mm | |
|
Working air pressure / working power |
0.6-0.8Mpa/380V Three-phase 50HZ | |
|
Dimension (L × W × H) |
5800×2000×1500 mm | |
|
Optional functions and devices | ||
|
Driling/tapping function |
By adding many different drilling heads, it can realize drill or tap single or multi holes | |
|
Multiple shaft drilling device |
Can be customized from Taiwan factory |
Spare tools：Customized forming drill bits, German saw blades. |
|
Dust collector |
Installation of security light curtain | |
