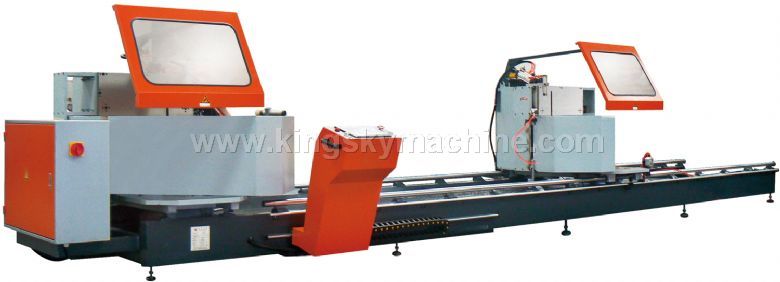

KS-J225D/S/S3-CNC Large-scale Straight-forward Double Mitre Saw

KS-J225D/S/S3-CNC Large-scale Straight-forward Double Mitre Saw



This machine is researched and developed for the non-standard locating plane and multi-angle material cutting by adopting mature German design concept and conforming to the changeable profile development trend. It's one of our featured machines; it is also the best-appraised double head in the markets, which can complete material cutting and multi-angle cutting of aluminum alloy and PVC profile.

By adopting straight-forward type feeding and servo motor control, it has inimitable advantages for stability of profile cutting and durability of blades, cutting width, smoothness and precision of cutting than other similar structures of machines with the golden cutting angle formed by the tool and profile. Equipped with German hard alloy saw blades, imported guide rail, the main parts are cast, seamless connection; and installed with hydro-pneumatic damper stepless speed regulation, automatic oil spray lubrication cooling device, this machine has the features of high strength, precise cutting and superior stability. With imported integrated PLC, this machine can operate easily and has features of automatic detection and diagnosis, high circuit stability, wide applicability of operating environment, remote maintenance, upgrading, the overall indicator of the whole machine has reached the international first class standard.

TECHNICAL PARAMETER

Model and parameter
KS-J225D  Digital display
KS-J225S  CNC Control
KS-J225S3  3-Axis CNC
Control mode of angle and length
Digital display Length, Rotation and blade swing with pneumatic control
CNC Length, Rotation and blade swing with pneumatic control
CNC Length and body rotation swing angle control
Precision of cutting length
±0.1mm
±0.05mm
Precision of cutting angle
±0.05°
±0.05°
Automatic feeding function
No
Yes
Optimized material cutting function
No
Yes
Processing range (H×W)
180×500mm/160×600mm
Swing angle of electric control
45°- 90°
Rotating speed of main motor
2840r/min
Power of main motor
4kW×2
Saw blade feeding \ returning speed
Feeding 0-3m/min   Returning 2-3m/min
Blade Size
Ф550×Ф30×4.8×120T
Working air pressure / voltage
0.6-0.8MPa/380V 50Hz
Dimension (L × W × H)
7500×2500×1900 mm
Effective cutting length
420/780~5300mm
Machine weight
3000kg
Optional Devices and Functions
Setting, Tools and positioning template, Spare tools,Dust collector,
D configuration bracket: can cut many profiles at 90 degrees
