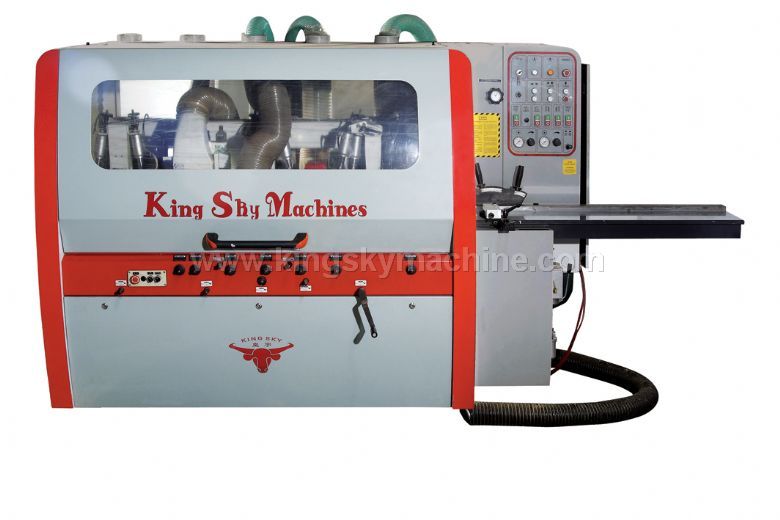

KSAW-SX421-CNC Alu-wood Door & Window Profile Forming Machine

KSAW-SX421-CNC Alu-wood Door & Window Profile Forming Machine




The machine is exclusively developed by our company by adopting advanced mechanical technology in the world and combining with the professional outcome of our company; the machine is used as the latest equipment in the enterprises which are engaged in alu-wood windows and doors and demand one-time completion of four-side wood milling and grooving; it is mainly used for the milling of wood materials before the combination of materials for aluminum-wood composite doors and windows; shaping milling tool is adopted to finish four-side wood milling once with high precision of size and production efficiency is high.
Color human-machine touch screen can realize automatic control; The interface is clear, and the operation is simple; With imported computer (PLC) integrated program control, the machine can realize automatic detection, diagnosis, remote maintenance and upgrading.
TECHNICAL PARAMETER
Model and parameter
CNC Alu-wood Door & Window Profile Forming Machine
Processing width/thickness
25-120mm/8-100mm
Length of worktable
1250mm
Feeding speed
40mm
Rotating speed of Spindle
600r/min
Pressure of air supply
0.6MPa
Motor of first/second lower shaft
3Kw
3Kw
Motor power of first upper shaft
4Kw
Motor power of Beam rising and falling
0.37Kw
Motor power for feeding
2.2Kw
General power
18.57Kw
Diameter of cutter (First lower shaft)
φ125mm
Diameter of cutter (Right vertical shaft)
φ125-φ160mm
Diameter of cutter (Left vertical shaft)
φ125-φ160mm
Diameter of cutter (First upper shaft)
φ125-φ160mm
Diameter of cutter (Second lower shaft)
φ125-φ160mm
Feeding wheel diameter
φ120
Diameter of dust pipe
φ125
Working voltage
380VAC/50HZ
Overall dimension
3500X1800X1900mm
Optional device, Optional function
Dust collector, Spare tool

Pre: KSAW-SX221--CNC Alu-Wood Profile Double End Milling Machine
Next: KSAW-MH1540--Automatic Finger Jointer for Alu-wood Door & Window
