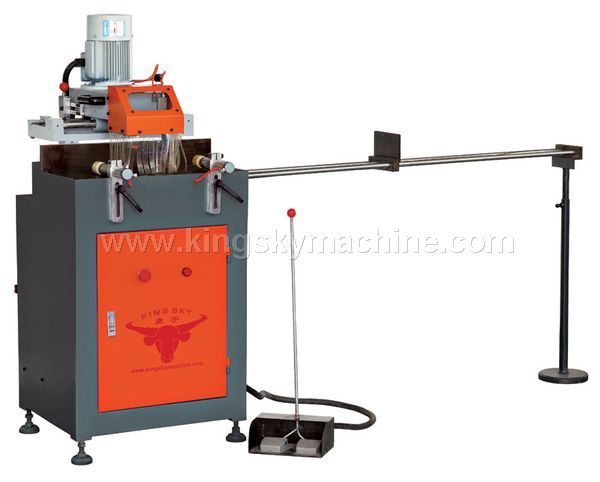

ENGLISHKS-X152-Semi-automatic Single Axis copy router
Developed by German Mature structure, it mainly used for milling different through holes for aluminum alloy materials of curtain walls and windows as per hole mould in 1:1 ratio. With casting technique, the worktable is very stable, durable and metabolic; the special designed fast/slow feeding device could improve the quality of machining finish and prolong the lifespan of blades.
Semi-automatic Copy Router has adjustable postpositional horizontal tri-head drill, solving the problem of inconvenient operation and unadjustalbe hole distance, it also has large machining size and high precision, furnished with adjustable tri-head drill, which could drill holes on the multipoint lock work piece and the milling & cutting would be finished within one time machining, so it is more suitable for drilling multipoint lock, milling and cutting on the adiabatic profile material.
TECHNICAL PARAMETER
|
Model and parameter |
Semi-automatic Single Axis copy router KS-X152 |
|
Worktable Dimension |
620X260 mm |
|
Maximum working travel of vertical milling head from left to right |
260mm |
|
Maximum working travel of vertical milling head from front to rear |
130mm |
|
Motor power |
1.1Kw |
|
Rotating speed of vertical milling tool |
12000r/min |
|
Milling tool size (Common use) |
φ8 |
|
Milling tool size Useable |
φ3/φ5 |
|
Maximum working travel of pressing cylinder |
50mm |
|
Working voltage |
380VAC 50HZ |
|
Working air pressure |
0.6-0.8MPa |
|
Overall Dimension |
2650/800X800X1500MM |
|
Tool feeding mode |
Pneumatic |
|
Machine Weight |
180Kg |
|
Optional function and device |
Clamps, positioning templates, and retrofitted rack |
