Mainly used for bending iron profile, copper profile and aluminum profile, it's the ideal equipment for furniture, iron technique, aluminum windows and doors, as well as decoration steel.



CNC Hydraulic Profile Arc Bending Machine is the best and most stable machine in the world market, it fully solves the problems of inaccurate bending, deformation, surface scratch and crumple,etc. with our CNC software, it can realize high precision and nice appearance with easy operation. By adopting special device, it can protect the profiles from deformation and surface scratch; Automatic colored man-machine touching interface allows simple operation; With imported integrated PLC system, this machine can realize simple operation with the functions of automatic detection and diagnosis and the features of high circuit stability, wide applicability of operating environment; remote maintenance and upgrading.

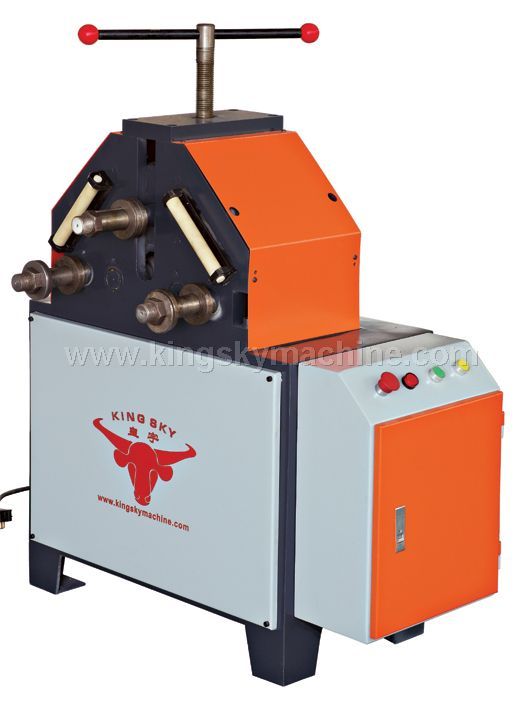

Model and parameters	KS-W3503 Manual Arc bending machine
Minimum bending radius	350mm
Maximum diameter of mould	100mm
Diameter of roller	30mm,40mm
Driving mode	Linkage of motor with one gear case
Working mode	Manual adjustment
Center distance of rollers	180mm, 360mm
Positioning precision of upper roller	0.3mm
Maximum travel route of upper roller	100mm
Maximum width of profile	95mm
Power of electric motor	1.5kW
Pressure of oil	-
Working voltage	380VAC/50Hz
Dimension (L*W*H)	650x950x1200mm
Weight of machine	300Kg
Matching function, device	bending mould of profile
